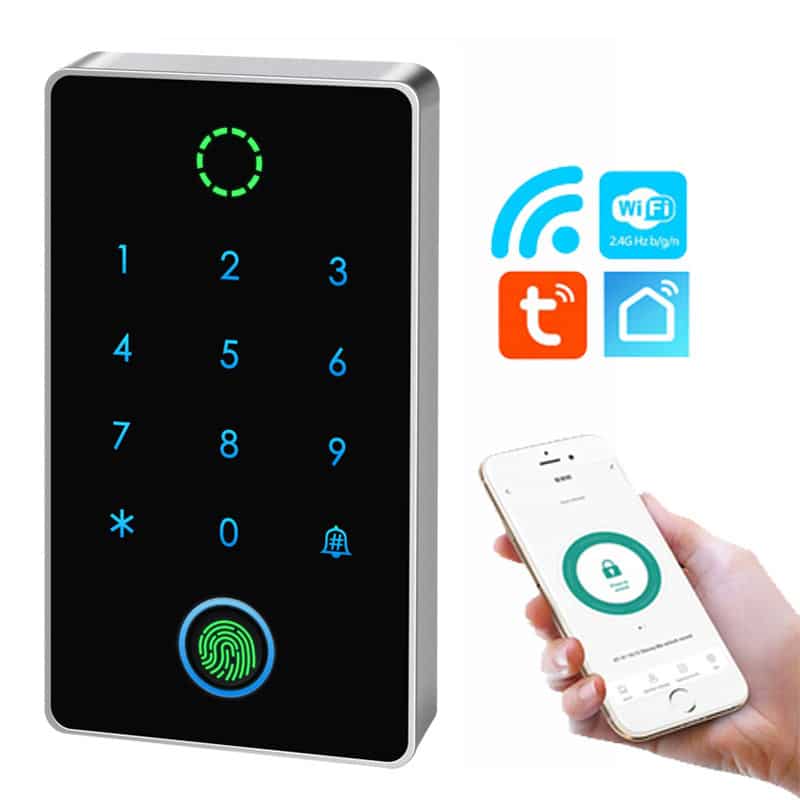

Tuya WiFi Smart Access Control System

Upgrade your home or office security with the Tuya WiFi Smart Access Control System. This modern smart access controller allows multiple unlocking methods including Fingerprint, Password, RFID Card, and Mobile App.

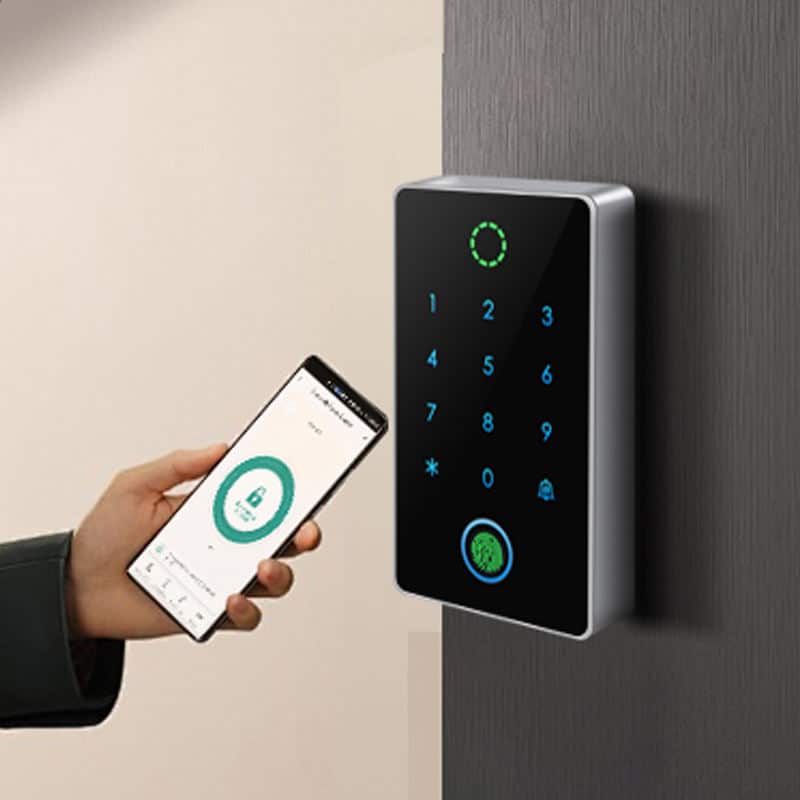

Using the Tuya Smart or Smart Life App, you can remotely unlock the door, manage users, create temporary passwords, and monitor access history from anywhere.

Its premium  touch panel provides a sleek appearance while ensuring durability and reliable performance.

Ideal for:

• Homes
• Offices
• Shops
• Apartments
• Warehouses
• Commercial Buildings


  ---

  Specifications

  • Connectivity: WiFi (2.4GHz)
  • Mobile App: Tuya Smart / Smart Life
  • Unlock Methods:
    • Fingerprint
    • Password
    • RFID Card
    • Mobile App
  • Material: Tempered Glass Panel
  • Color: Black
  • Keypad: Capacitive Touch
  • Waterproof: Indoor Use
  • Power Supply: DC 12V
  • Installation: Surface Mounted

  ---

  Package Includes

  • 1 × WiFi Smart Access Control Panel
  • Installation Accessories
  • User Manual

  ---

  Warranty

  • 1 Year Replacement Warranty
  • Lifetime Technical Support by Leo Smart Solution

  ---

  What’s in the Box

  • Smart Access Control Panel ×1
  • Mounting Kit ×1
  • User Manual ×1

  ---

  Here is a simple connection diagram for a Tuya WiFi Access Control System (Keypad + Fingerprint + RFID) using a 12V DC power supply, electric lock, and exit button.

  AC 220V
  │
  ▼
  +——————+
  | 12V DC Power PSU |
  +——————+
  │ │
  +12V GND
  │ │
  └────┬─────┘
  │
  +—————————+
  | Tuya WiFi Access Controller|
  |—————————|
  | +12V ◄──────────────── +12V
  | GND ◄──────────────── GND
  | NO ——————–┐
  | COM ——————-┼──► Electric Lock
  | NC ——————–┘
  | EXIT ◄──── Exit Button
  | GND ◄──── Exit Button
  | BELL ◄──── Door Bell (Optional)
  +—————————+

  │
  ▼
  Tuya Smart / Smart Life App
  (WiFi 2.4GHz)

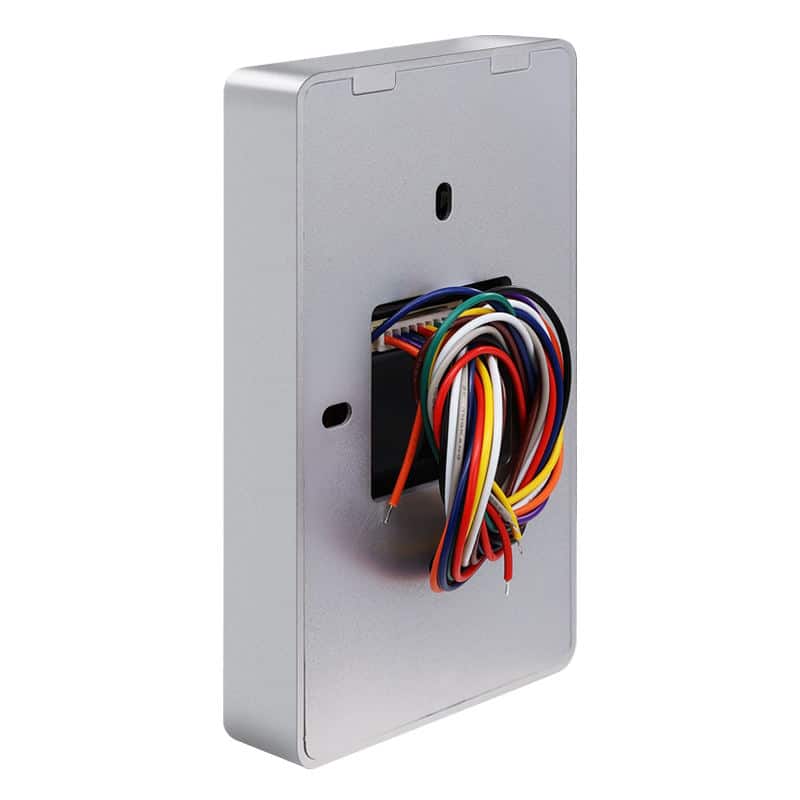

  Wiring Details

  Terminal	Connection
  +12V	12V DC Positive
  GND	12V DC Negative
  COM	Common terminal of the relay
  NO	Connect to Electric Strike Lock (Fail Secure)
  NC	Connect to Magnetic Lock (Fail Safe)
  EXIT	Exit Push Button
  GND	Exit Button Common
  BELL	Optional Door Bell

  Unlock Methods

  • ✅ Fingerprint
  • ✅ RFID Card
  • ✅ Password/PIN
  • ✅ Tuya Smart App
  • ✅ Smart Life App
  • ✅ Remote Unlock
  • ✅ Temporary Password

  Lock selection:

  • Electric Strike Lock: Use COM + NO
  • Magnetic Lock (Maglock): Use COM + NC
