IP65 Waterproof Fingerprint RFID Access Control System

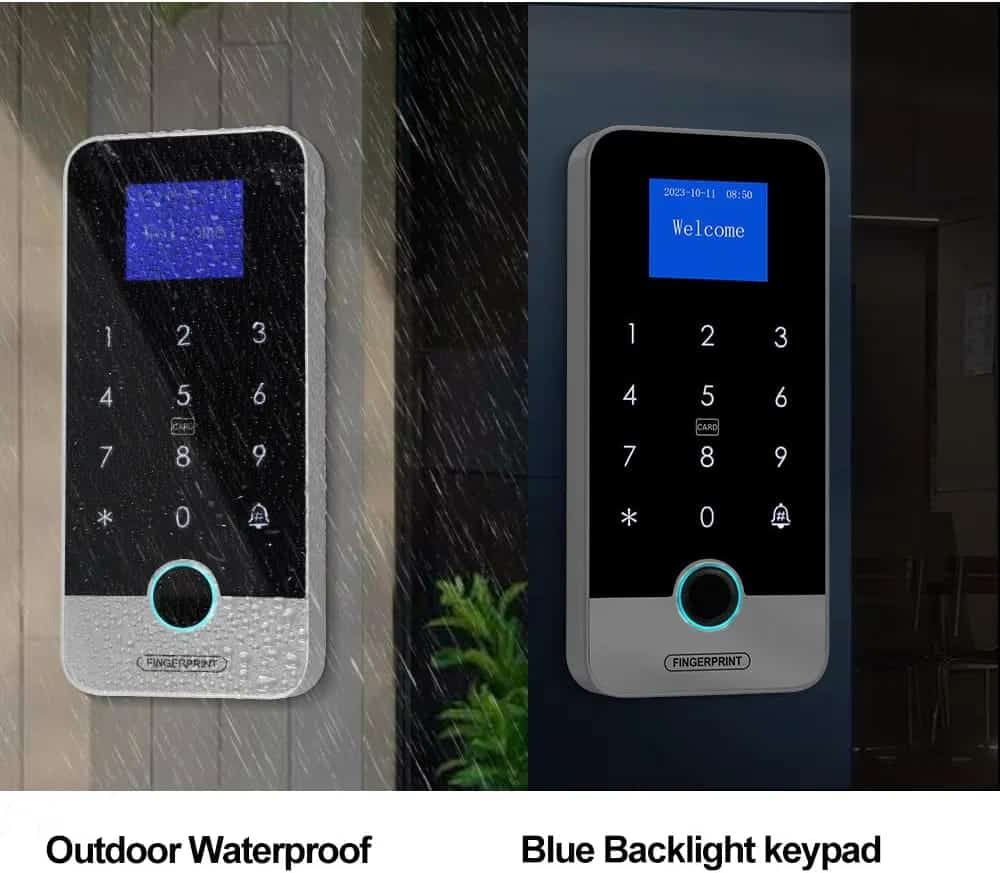

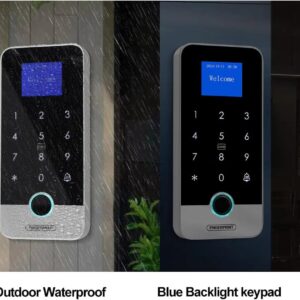

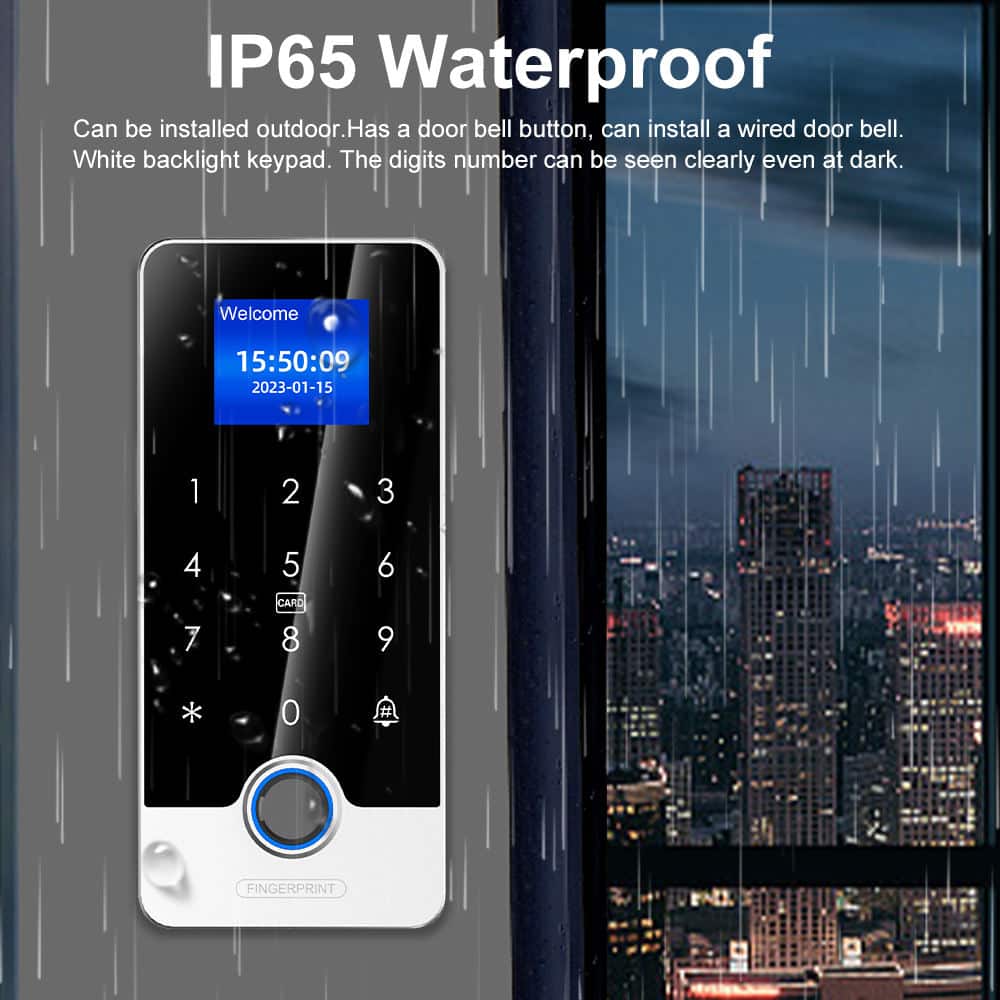

Upgrade your security with this smart biometric access control system designed for both indoor and outdoor environments. The device features an IP65 waterproof body, ensuring reliable performance even in rain and harsh weather conditions.

The illuminated touch keypad allows easy operation at night, while the fingerprint sensor provides quick and secure access within seconds. You can also unlock using an RFID card or a numeric password, making it ideal for families, employees, tenants, or visitors.

A built-in doorbell button allows connection to a wired doorbell, adding extra convenience for guests.

Perfect For

• Main entrance doors

• Iron gates

• Offices

• Shops

• Apartments

• Warehouses

• Smart home installations

  Features

  • IP65 Waterproof Design – Suitable for outdoor use in rain and dust.

  • Fingerprint Unlock – Fast and secure biometric access.

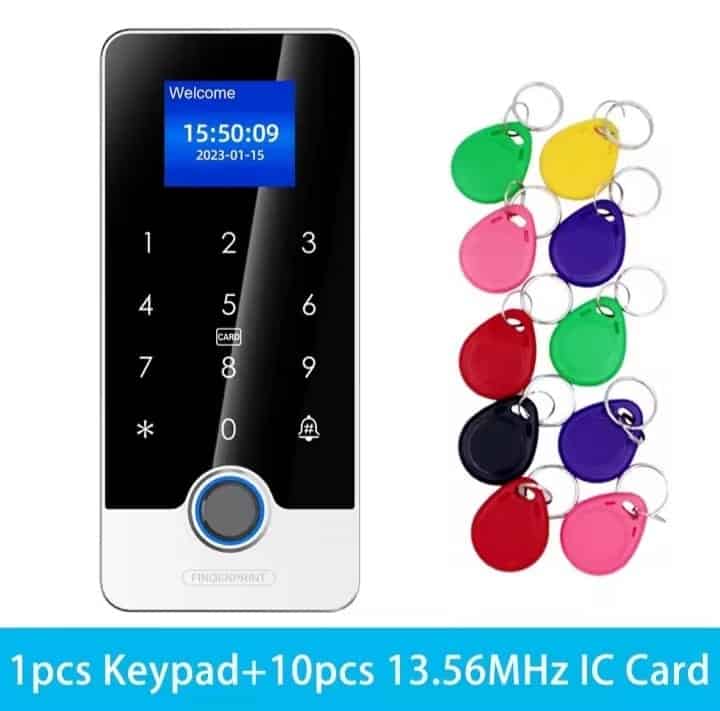

  • RFID Card Access – Convenient card-based entry.

  • Password Keypad – Touch keypad with white backlight for night visibility.

  • Built-in Doorbell Button – Connect a wired doorbell easily.

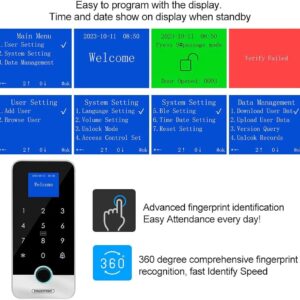

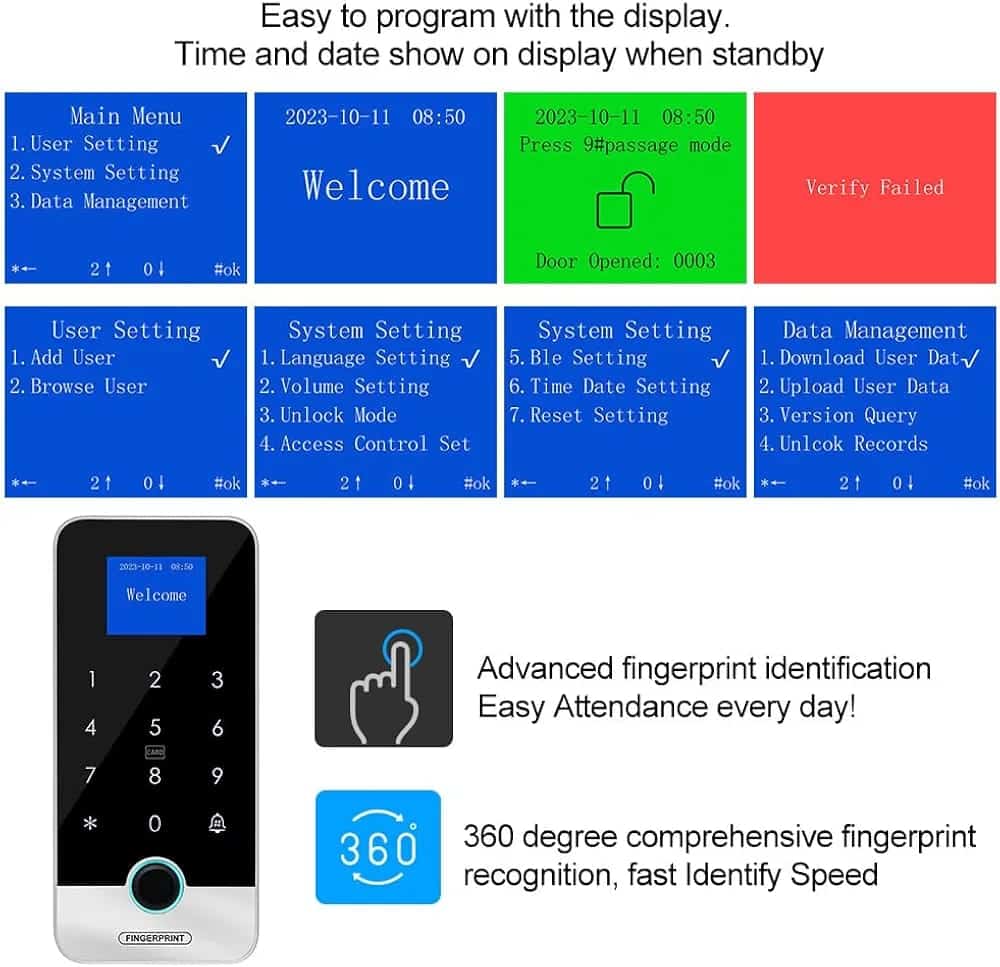

  • LCD Display – Clear time and date display.

  • Multiple User Support – Add multiple fingerprints, cards, and passwords.

  • Easy Installation – Ideal for homes, offices, apartments, and gates.

    Specification	Details
    Product Type	Fingerprint RFID Access Control System
    Installation	Indoor & Outdoor
    Waterproof Rating	IP65
    Unlock Methods	Fingerprint, RFID Card, Password (PIN)
    Fingerprint Sensor	High-Speed Biometric Sensor
    Card Type	125KHz EM RFID Cards
    Password Length	4–8 Digits

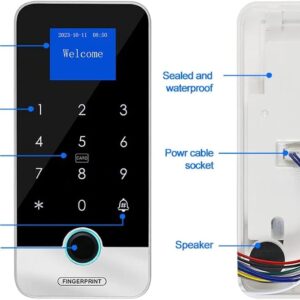

    Display	2.4-inch LCD Display
    Keypad	Touch Keypad with White LED Backlight
    Doorbell Function	Built-in Doorbell Button (Supports Wired Doorbell)
    User Capacity	Multiple Fingerprints, Cards & Passwords
    Lock Output	Electric Lock / Magnetic Lock Compatible
    Exit Button Support	Yes
    Alarm Output	Yes
    Operating Voltage	DC 12V
    Standby Current	≤50mA
    Working Current	≤150mA
    Operating Temperature	-20°C to +60°C
    Operating Humidity	20%–90% RH
    Housing Material	ABS + Tempered Glass Front Panel
    Color	Black & Silver
    Applications	Homes, Offices, Shops, Apartments, Warehouses, Main Gates

    WIRING DIAGRAM:

    AC 220V
    │
    ▼
    +—————-+
    | 12V DC Power |
    | Supply |
    +—————-+
    +12V GND
    │ │
    │ │
    +——–+———–+——–+
    │ │
    ▼ ▼
    +———————————————-+
    | IP65 Fingerprint Access Controller |
    | |
    | +12V GND NO COM NC PUSH BELL BELL |
    +———————————————-+
    │ │ │ │ │ │ │
    │ │ │ │ │ │ └──── Wired Doorbell
    │ │ │ │ │ └──────── Exit Button
    │ │ │ │ │
    │ │ │ │ └──────────── Electric Lock
    │ │ │ └────────────── COM
    │ │ └────────────────── NO / NC
    │ └──────────────────────── GND
    └───────────────────────────── +12V
